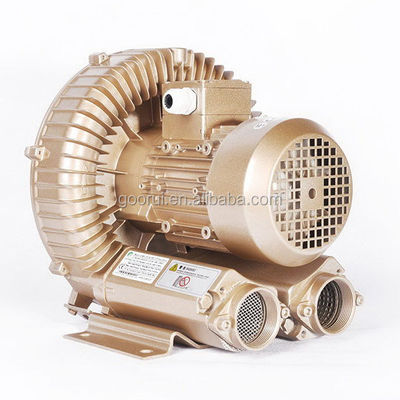

Heavy Duty Hot Electric Blower Acid-Base Blower Blower Turbo Blower High Pressure For Blower Drying

Detail Parameters of  acid-base resistant Hot air blower

Curve of acid-base resistant Hot air blower    please refer to GHBH 1R5 curve

Why choose Goorui?

• Own 64 core technologies,awarded 61 national invention patent.
• Adopt SKF & NSK bearing(20000 Hours life span).
• Use ADC12 aluminum alloy material.(same to BMW's wheel hubs).
• Insulation class: F, Protection class: IP54.
• 100% oil free air delivery ( Impeller connected to the motor directly, without any oil lubricating)  .
• No routine maintenance (whithout wheelgear and belt,don't need to do maintenance towards those parts).
• Quiet operation, low noise(adopt low noise motor.Meanwhile inlay muffler is available).
• Pulsation-free compression(use designer quakeproof footstand).
• Random installation(vertical or horizontal).
• Long life span:At least 2 years 24H continues runing.

• 100% strictly tested before leaving our factory.
• CE, SGS , CCC, RoHS, ISO9001 certified.
• 50/60hz available,wide-range models:

1.   Single phase/Three Phase
2.  Single stage/Double stage/Three stage
3.  Power range:0.2kw-25kw

4.  Air flow range: 45 - 2330 m3/h
5.  Pressure range: 80 - 1040 mbar
6.  Vacuum range: 70 - 730 mbar

Structure and Operation Principle of Goorui Regenerative Blower:

       Goorui regenerative blower is made up with impeller, casing, inlet and outlet, brackets, motors, pulleys, couplings, muffler, transmission parts (bearings), installed base, etc.

      Air gets-in through the inlet (1), then enters the side channel (2), now the high-speed-circling impeller will push the air to run after its direction. Meanwhile, centrifugalization makes the air running outward,which will give it higher speed and bigger pressure.

     With operation of impeller  ,the air will be speeded and  pressed again and again.

     When the pressure were higher than outside,the air will get out from the outlet (4).

Accessories:

Applications of Goorui Regenerative Blower:

typical case:

 More applications:

  Marketing Service

• Proffesional model selecting according to the pressure&airflow(or other working conditions) guests provided.
• Proffesional advice for the systematic design according to the result you want to achieve.
• Proffesional direction for  the installation and debugging of goorui blowers.


After-sale Service

•  12-months warranty
• long-term technical support for gorui blowers.
• long-term technical advice for your project/system.


Q: Can water be pumped through my blower?

A: No, clean dry air only

Q: My blower is leaking around the cover is this normal?

A: Normal goorui blowers are not  leak-free designed,but if you care a lot about the leaking,then you can contact us for a leak proof  one(special customized).

Q: What kind of oil do I need for my blower?

A: All our goorui blowers are oil-free and maintenance-free designed.

Q: Can I pump combustible gas through my blower?

 A: Normally,if you'd like to use blower for combustible gas conveying,we suggest to choose our explosion proof ATEX blower (special customized) .

Q: Are the foam pieces inside my blower for filtration?

A: No, they are not for filtration. They are designed for sound reduction, an inlet filter should be sourced separately.

Q: What will be the consequences if I don’t use a relief valve on my blower?

A: The blower may get overheat, and may cause thermal expansion of internal parts, which will do harm to the impeller and Bearing.
